ATL Super Cell® "400" Series - Sprint & Midget Cells
Back Racing Home Printer Friendly .PDF   Next
Click Here to Learn More

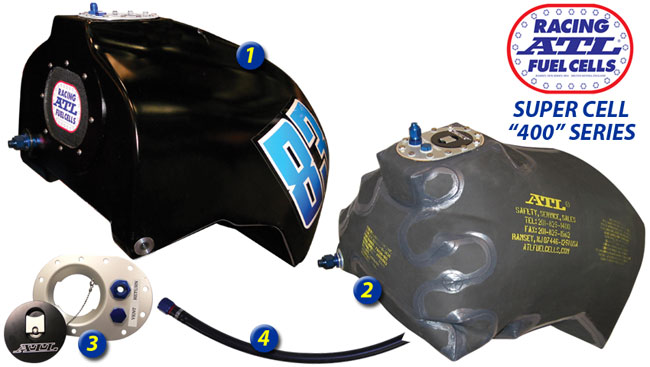

The Components of a Super Cell® "400" Series Fuel Cell:
ATL Super Cell "400" Series
Molded, Seamless Outer Tail Tank:
  • Natural, Unpainted (Shown Painted)
  • (1) #12 AN (3/4”) Front Outlet
  • Easy Access Front Cover Panel
  • (4) Threaded Mounting Inserts
  • Meets FIA FT3 Standards
Light-Weight Bladder:
  • Tough/Thin/Pliable
  • Internal Seams for Increased Capacity
  • Resistant to Methanol & Ethanol
  • Internal Pick-Up Hose Assembly (#12 AN)
  • The Only REPAIRABLE Bladder Available
  • Easy Installation
TF497 Aluminum Fill Plate
4” x 6”:
  • (1) 2-1/2” Alum. Flush Fill Cap
  • (1) #6 AN (3/8”) Vent Check Valve
  • (1) #8 AN (1/2”) Return
#12 (3/4") Pick-Up Hose Assembly

• 5 Year Limited Warranty!
• All ATL Sprint Cells are Designed with a Low Forward Center of Gravity

ATL Sprint Bladders are Designed for Alcohols:

• M100: 100% Methanol
• B100: 100% Butanol
• E100: 100% Ethanol
• E85: 85% Ethanol, 15% Gasoline
(NOT for use with petroleum-type motor gasolines)

Resistant to most cleaners & de-greasers, too!
Click here for seasonal maintenance and storage tips!
ATL Fuel Bladders can be found in every Kasey Kahne Racing Sprint Car!
ATL Sprint Car Bladders - The Lightest on the Market!
COMPLETE ASSEMBLIES
Gal. Part # Product Description Cell Style
19 SC419 19 Gal. ATL Midget Cell Assembly Replaces Fuel Safe Part # MB219
28 SC428 28 Gal. ATL Sprint Cell Assembly Karl Kinser Outlaw
28 SC428-FS 28 Gal. ATL Sprint Cell Assembly Replaces Fuel Safe Part # SB228
33 SC433-FS 33 Gal. ATL Sprint Cell Assembly Replaces Fuel Safe Part # SB233
33 SC433-KK 33 Gal. ATL Sprint Cell Assembly Factory Kahne Designed Outlaw
33 SC433KK-BI2-TF698 33 Gal. ATL Sprint Cell Assembly w/ Options Factory Kahne Designed Outlaw
TAIL TANKS ONLY
Gal. Part # Product Description Cell Style
28 TT428 28 Gal. Tail Tank ONLY Karl Kinser Outlaw
28 TT428-FS 28 Gal. Tail Tank ONLY Replaces Fuel Safe Part # ST128
33 TT433-FS 33 Gal. Tail Tank ONLY Replaces Fuel Safe Part # ST133
33 TT433-KK 33 Gal. Tail Tank ONLY Factory Kahne Designed Outlaw
BLADDERS ONLY
Gal. Part # Product Description Cell Style
19 FB419 19 Gal. ATL Midget Bladder Replaces Fuel Safe Part # SB119
27 FB427 27 Gal. ATL Midget Bladder Fits Saldana Dirt Midget
28 FB428 28 Gal. ATL Sprint Bladder Karl Kinser Outlaw
28 FB428-FS 28 Gal. ATL Sprint Bladder Replaces Fuel Safe Part # SB128
31 FB431 31 Gal. ATL Midget Bladder Fits Saldana Asphalt Midget
33 FB433-FS 33 Gal. ATL Sprint Bladder Replaces Fuel Safe Part # SB133
33 FB433 33 Gal. ATL Sprint Bladder Saldana Style
33 FB433-KK 33 Gal. ATL Sprint Bladder Factory Kahne Designed Outlaw
33 FB433KK-BI2-TF628 33 Gal. ATL Sprint Bladder w/ Options Factory Kahne Designed Outlaw
38 FB438 38 Gal. ATL Sprint Bladder Fits Saldana Asphalt Tank
OPTIONS, ACCESSORIES & REPLACEMENT PARTS
Part # Product Description
-BI2 Built-In 2-Door Surge Tank
-B Built-In Baffle
TF698 60 Micron, Vertical Fuel Filter for Surge Tank Use
TF699 60 Micron, 90° Standard Fuel Filter, Horizontal
TF497 4" x 6" Aluminum Fill Plate Assembly
TF478 #12 (3/4") Pick-Up Hose Assembly
